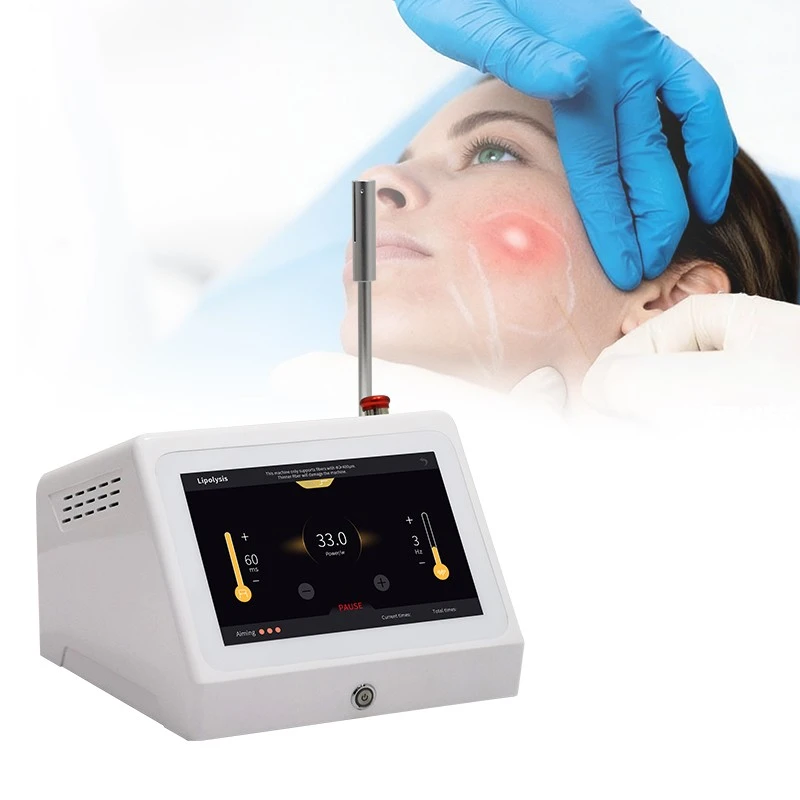

980nm 1470nm 635nm Endolift Laser

Product Overview
The 980nm 1470nm 635nm Endolift Laser from Benomi is a triple-wavelength diode platform built for minimally invasive lipolysis, vascular treatment, and anti-inflammatory therapy. The system delivers energy through a fiber-optic handpiece, allowing the practitioner to work beneath the skin without large incisions. The combination of wavelengths is not cosmetic; each one targets a different biological response.

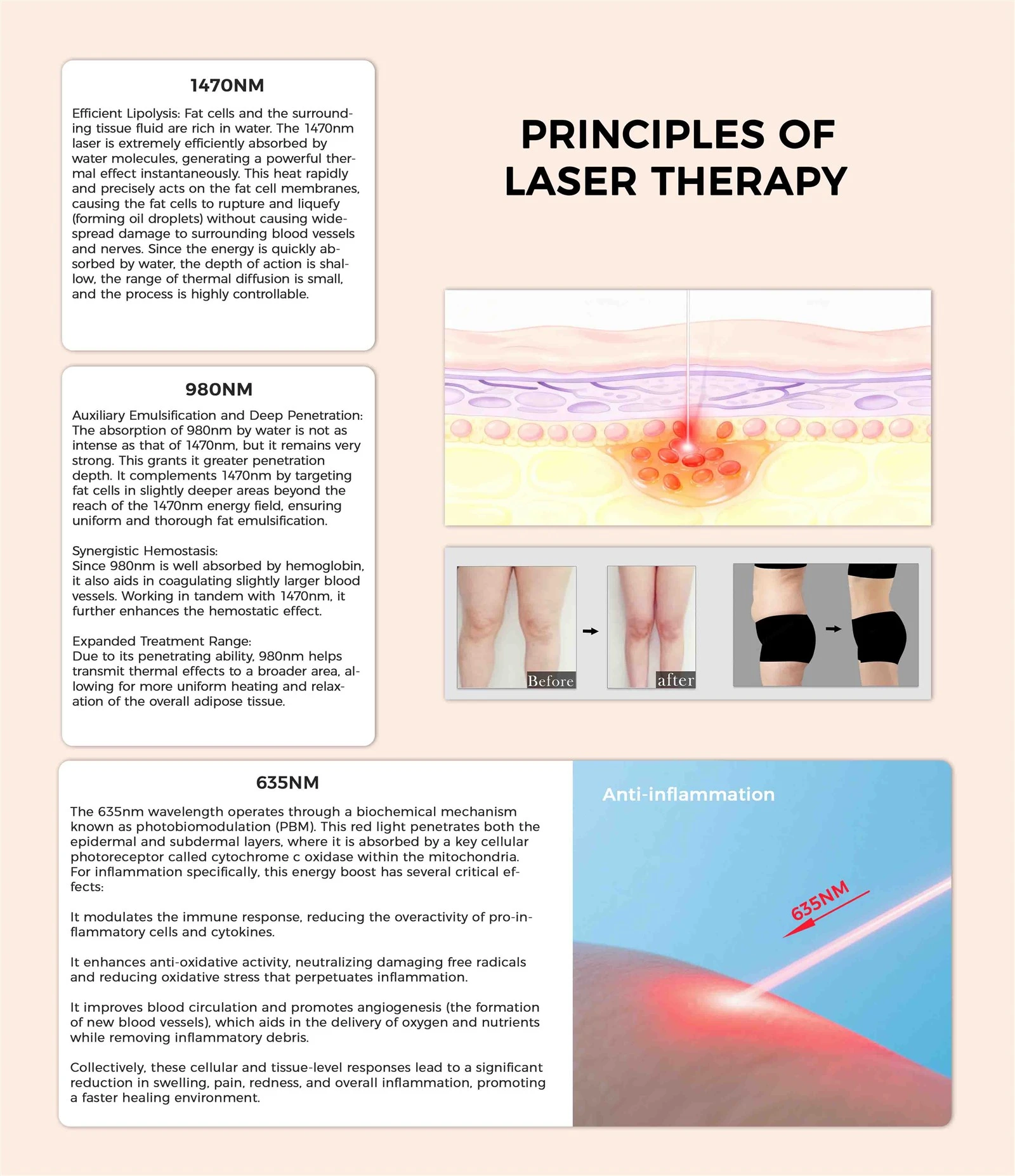

The 1470nm wavelength is strongly absorbed by water, which makes it highly effective for fat emulsification. It produces a controlled thermal effect that ruptures adipocytes while keeping damage to surrounding nerves and vessels minimal. The 980nm wavelength penetrates deeper and is absorbed by hemoglobin, providing hemostasis during treatment and helping to coagulate small vessels. It also extends the thermal field into the subdermal fat layer for more uniform remodeling. The 635nm wavelength operates through photobiomodulation, activating cytochrome oxidase in mitochondria to reduce inflammation, improve circulation, and accelerate tissue repair.

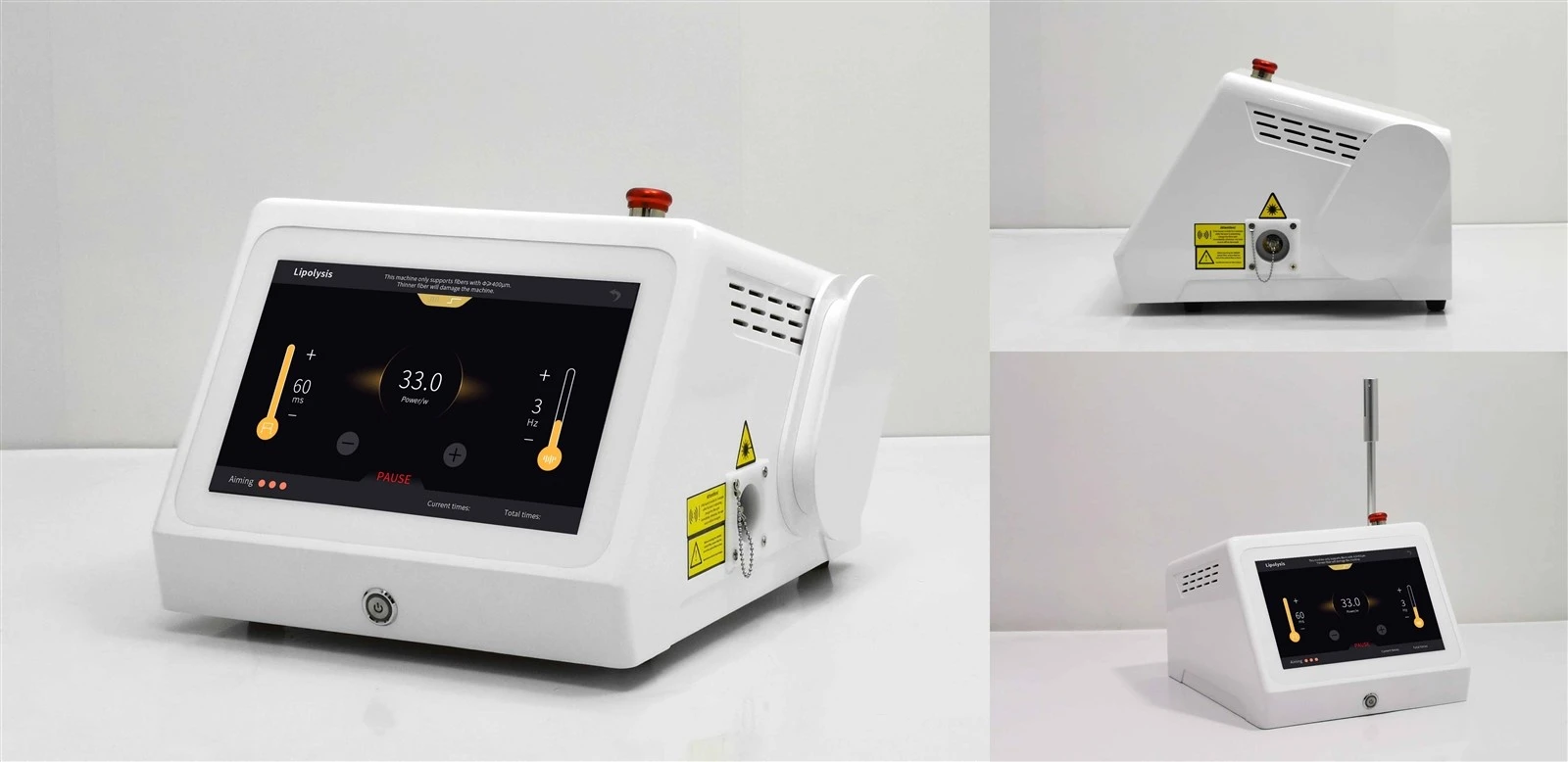

The console runs on a 12.1-inch touchscreen with pulse and continuous modes. Pulse width is adjustable from 15ms to 60ms, frequency from 1Hz to 9Hz, and the aiming beam is set at 650nm. The fiber length is 3 meters, and the entire system weighs only 8kg, making it portable and suitable for clinics that need to move equipment between rooms. The machine supports OEM/ODM branding, including language customization and logo placement.

Key Advantages

Three Wavelengths for Comprehensive Treatment
The 1470nm wavelength handles fat dissolution with high water absorption. The 980nm wavelength provides deep penetration and vascular coagulation. The 635nm wavelength reduces inflammation and promotes healing. Together they cover lipolysis, vascular removal, skin rejuvenation, and anti-inflammatory therapy in one device.

Minimally Invasive Fiber Delivery
The laser energy travels through a flexible optical fiber, which can be inserted through a very small entry point. This allows precise targeting of subcutaneous fat without the need for open surgery. The result is faster recovery and lower risk compared to traditional liposuction.

Controlled Thermal Effect Reduces Collateral Damage

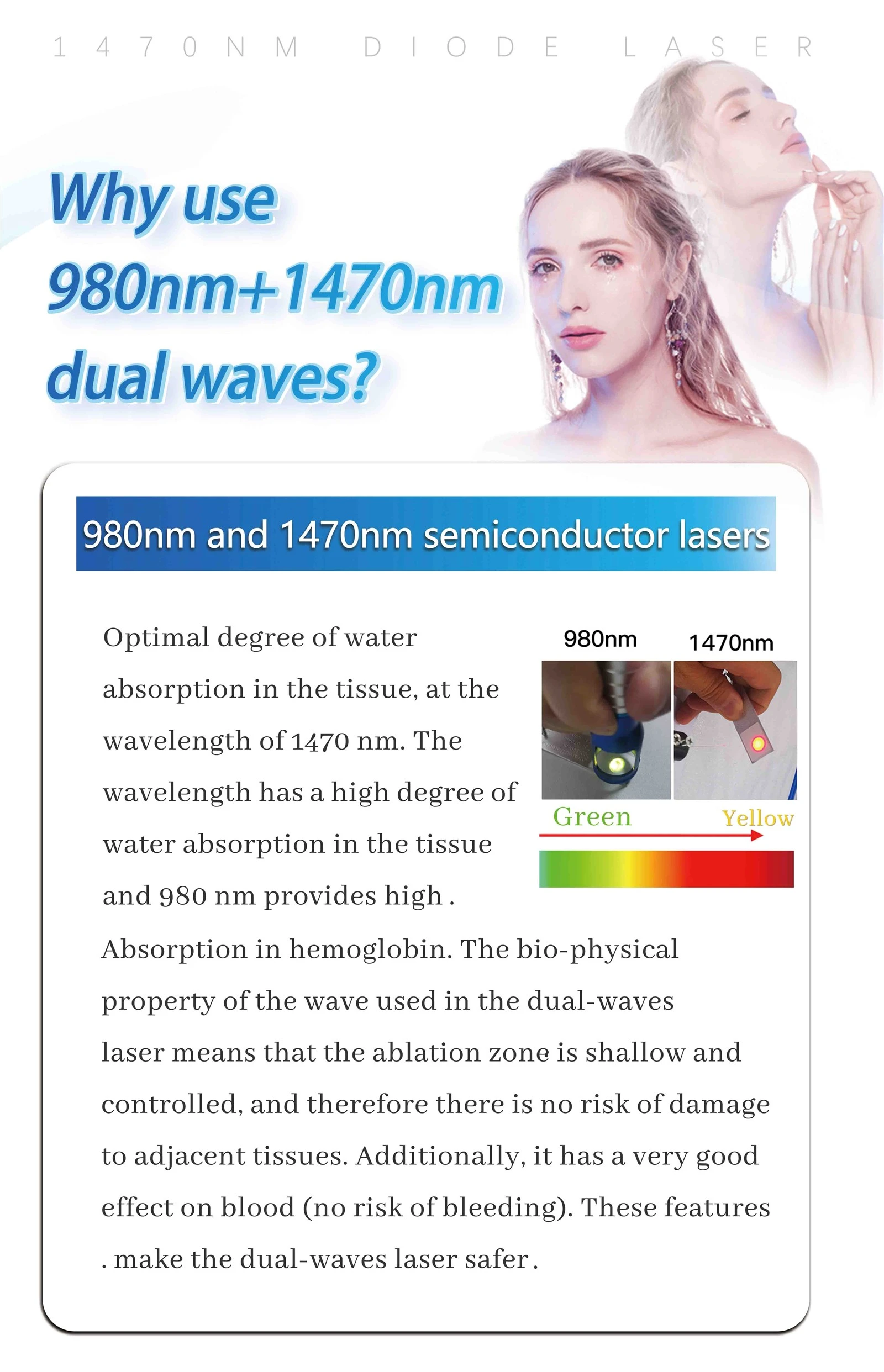

The dual 980/1470nm combination creates a shallow ablation zone. Because energy is rapidly absorbed by water and hemoglobin, the thermal spread is limited, protecting adjacent tissues. The hemostatic effect also minimizes bleeding and bruising.

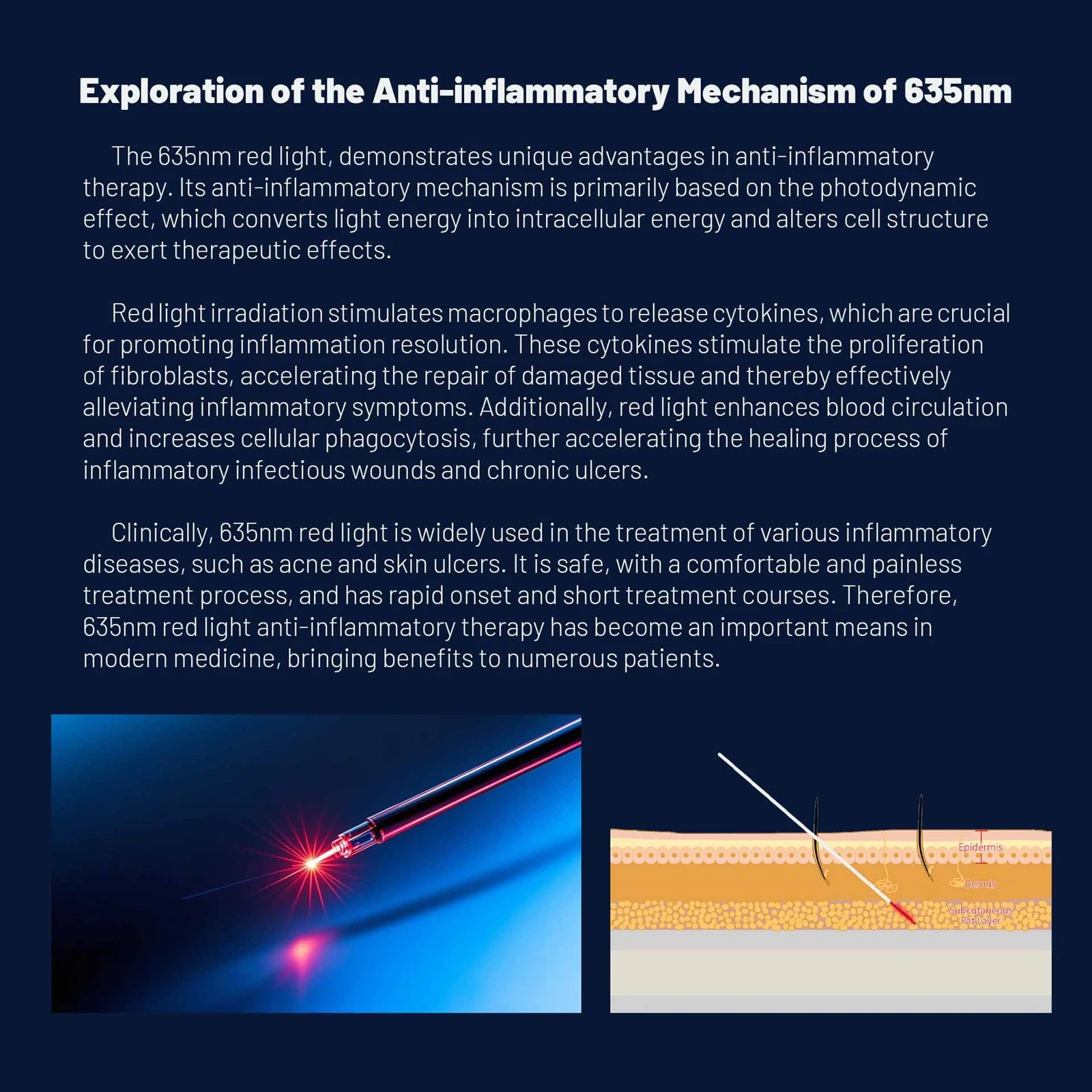

635nm Photobiomodulation for Recovery
The red light wavelength stimulates mitochondrial activity, reduces pro-inflammatory cytokines, and improves local circulation. This supports faster healing after lipolysis and helps manage inflammatory skin conditions such as acne and eczema.

Portable and Practical Design

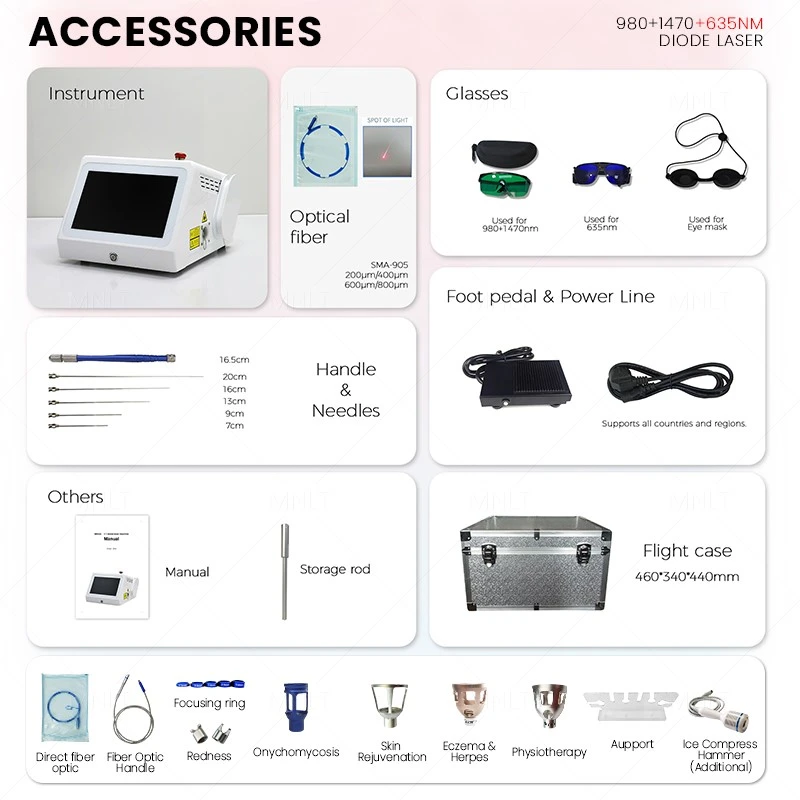

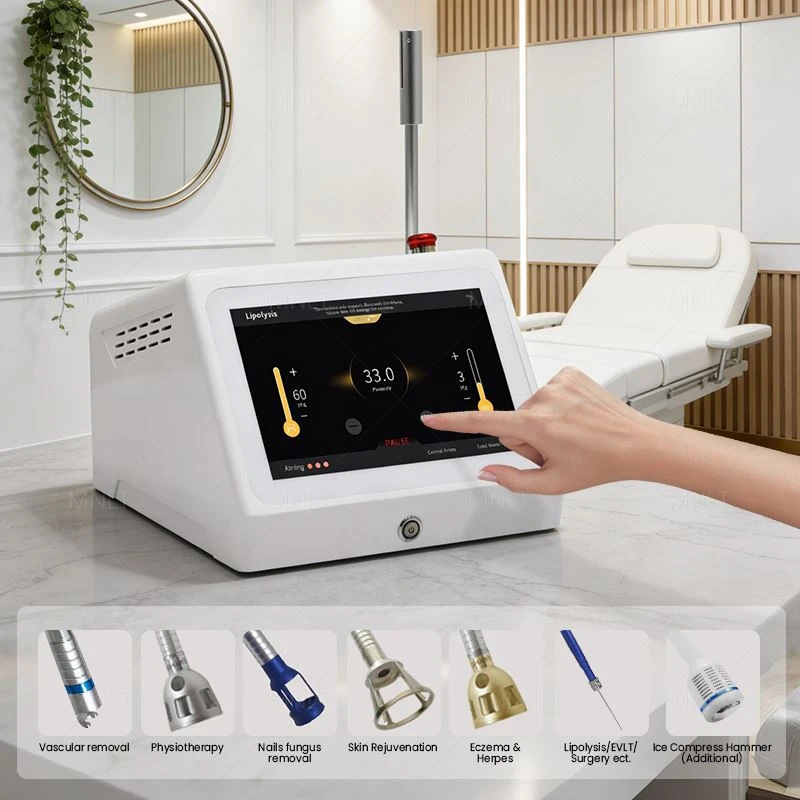

The main unit weighs 8kg and fits into a compact flight case. The 12.1-inch touchscreen is intuitive, and the fiber handpiece can be used with various needle lengths. This makes the system suitable for both fixed clinics and mobile services.

OEM/ODM Support
Benomi can customize the startup screen, language, and branding on the machine body and packaging. The interface can be preloaded with your logo and treatment protocols.

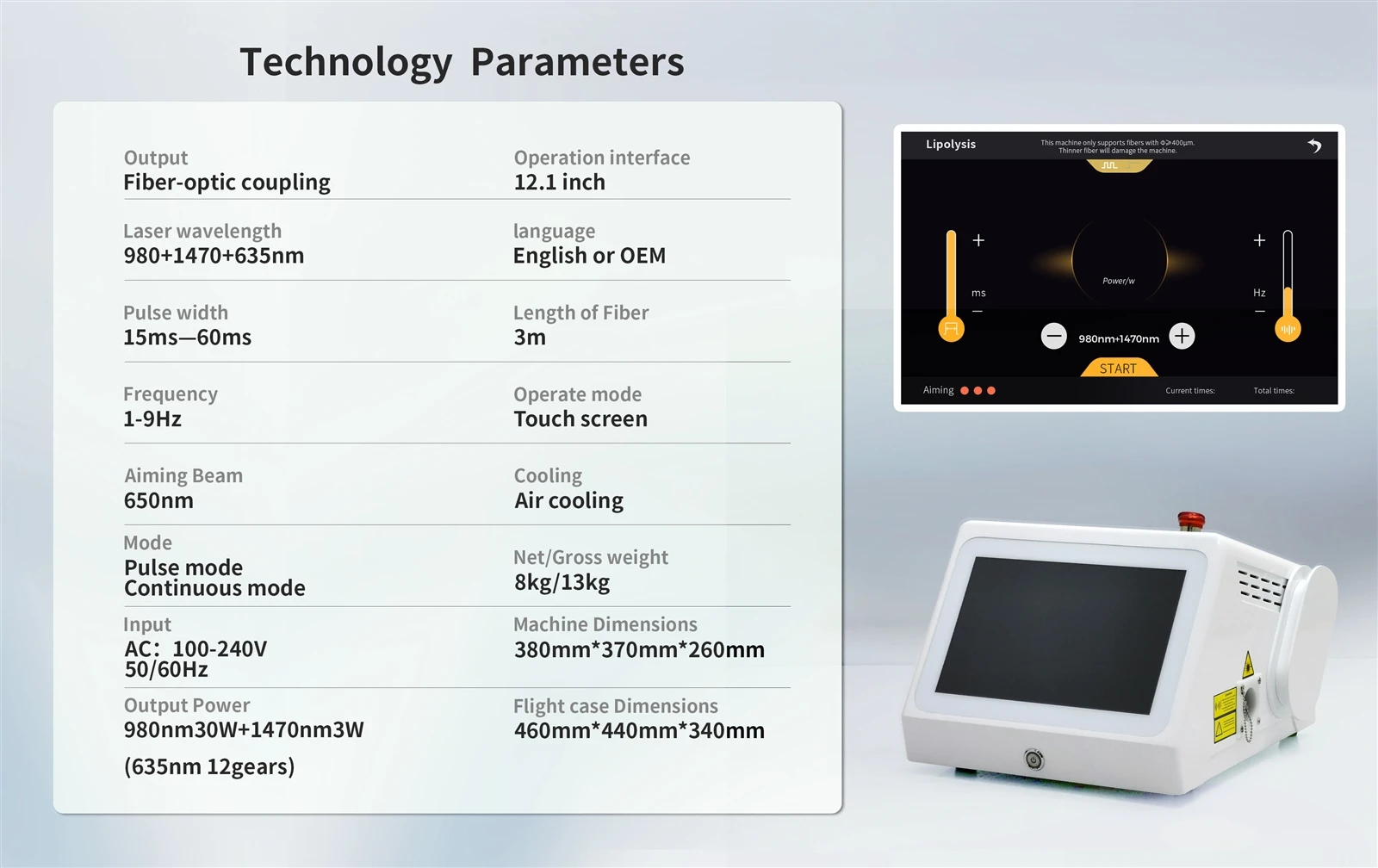

Technical Specifications

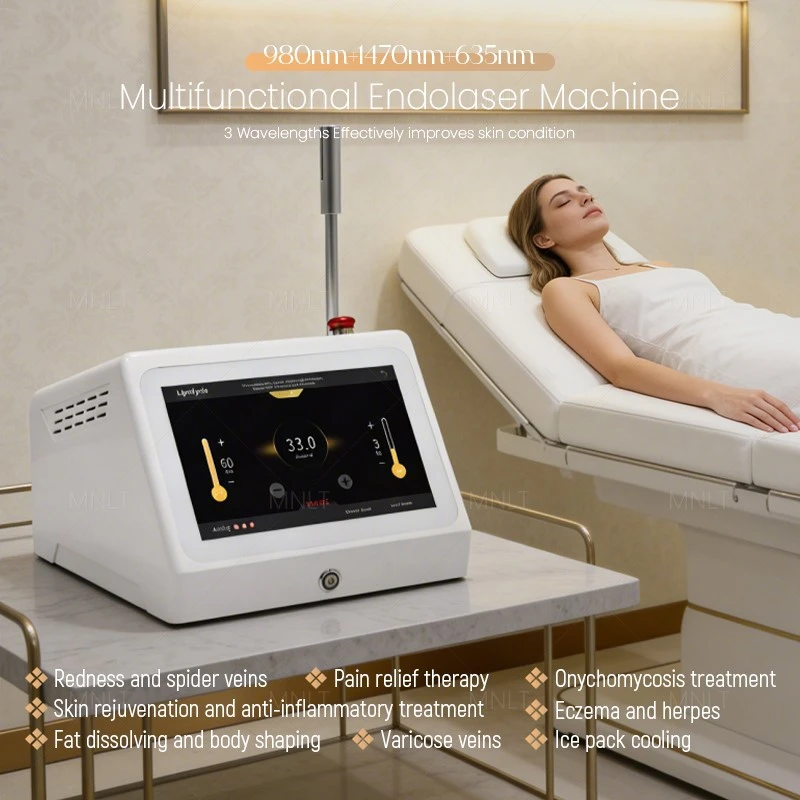

Ideal Settings

Aesthetic clinics offering minimally invasive fat reduction and double chin treatment.

Dermatology practices treating vascular lesions, redness, spider veins, and inflammatory skin conditions.

Medical spas providing endolift facial tightening and collagen stimulation.

Physiotherapy centers using 635nm red light for pain relief and tissue repair.

Podiatry clinics treating nail fungus with the targeted laser mode.

Mobile practitioners who need a lightweight system with a flight case.

Treatment Comparison

Case A: Double Chin Reduction
A 38-year-old female with submental fullness underwent one session of endolift lipolysis using the 1470nm and 980nm wavelengths delivered through a 16.5cm fiber needle. The procedure took under 40 minutes. At the four-week follow-up, the submental contour appeared visibly sharper, and the patient reported a smoother jawline with minimal bruising and no downtime.

Case B: Facial Skin Tightening and Inflammation
A 45-year-old male with mild jowling and facial redness received three sessions combining 980nm vascular coagulation and 635nm anti-inflammatory therapy. The redness subsided after the second session, and the skin felt firmer. The patient described the treatment as comfortable and returned to work the same day.

Case C: Vascular Lesion Removal
A 52-year-old woman with small spider veins on the legs completed two sessions targeting the vessels with the 980nm wavelength. The veins faded significantly, and no scarring or hyperpigmentation occurred. The 635nm mode was used afterward to reduce local inflammation.

Practitioner Feedback
"The triple-wavelength concept makes this laser far more versatile than a single-wavelength lipolysis device. I use the 1470nm for fat, the 980nm for hemostasis and veins, and the 635nm to calm the skin afterward. It has replaced two separate machines in my clinic."
- Dr. Elena M., Aesthetic Physician, Rome

"The fiber handpiece is easy to handle, and the 12.1-inch screen is clear even during long procedures. Patients appreciate the minimal bruising and fast recovery. We have also used the 635nm mode for post-operative care with good results."
- Marco V., Clinic Director, Barcelona

"We purchased the OEM version with our logo on the interface. The process was simple, and the machine arrived ready to use. The portability is a big advantage for our mobile aesthetic service."
- Sophie L., Aesthetic Practitioner, Paris

Manufacturing and Certifications
Weifang Benomi Electronic Technology Co., Ltd. has specialized in the research, development, and production of professional aesthetic and medical laser systems for over 18 years. The company operates ISO-classified dust-free workshops in Weifang, China, where every Endolift Laser is assembled and tested under strict quality controls. The fiber-optic components are calibrated for consistent energy output, and each unit undergoes a full-function test before packing.

The device carries ISO 13485, CE, and FDA certifications. Benomi provides OEM and ODM support, including language customization, logo placement on the machine body and touchscreen, and custom packaging. A 24-hour online after-sales team handles technical questions, and modular construction allows quick component replacement.

Wholesale Policies and Customization Support

Minimum Order Quantity: One evaluation unit is available. Wholesale pricing starts at five units.

OEM/ODM Customization: Full branding on the machine body, startup screen, and packaging. Language and interface customization included. Free logo design assistance at the quotation stage.

Packaging: Flight case with foam protection. Custom-branded cases available for volume orders.

Lead Times: In-stock sample units ship within 3 business days. Branded orders typically ship within 7 to 18 business days.

Warranty: 2-year comprehensive warranty on the main unit and fiber handpiece.

After-Sales Service: 24-hour online support via email, video call, or remote diagnostics. Warranty-covered spare parts dispatched immediately.

Training: Remote onboarding session and video library included with the first order. On-site training optional for larger purchases.

Frequently Asked Questions

What is the main purpose of the 1470nm wavelength?
The 1470nm laser is highly absorbed by water, which makes it ideal for lipolysis. It ruptures fat cells while limiting thermal damage to surrounding tissue, making it a safe choice for facial and body contouring.

Why combine 980nm with 1470nm?
The 980nm wavelength penetrates deeper and is absorbed by hemoglobin. It provides hemostasis during fiber insertion and helps coagulate small vessels. It also extends the heating effect into the subdermal fat layer for more uniform results.

What does the 635nm wavelength do?
The 635nm red light works through photobiomodulation. It reduces inflammation, improves circulation, and accelerates tissue repair. It is used after lipolysis and for treating inflammatory conditions such as acne and eczema.

Is the procedure painful?
Most patients report only mild discomfort. The treatment is minimally invasive, and the hemostatic effect of the 980nm wavelength reduces bruising. Local anesthesia can be used for deeper lipolysis procedures.

How many sessions are needed?
For double chin and small fat areas, one session may be sufficient. Vascular lesions and inflammatory conditions may require two to three sessions. Results vary depending on the patient and the area treated.

Can the machine treat nail fungus?
Yes. The laser has a dedicated mode for onychomycosis treatment. The 980nm wavelength targets the fungus while the 635nm mode reduces surrounding inflammation.

How do I request a quotation or become a distributor?
Complete the inquiry form on this page with your clinic name, country, and whether you need a sample evaluation unit, standard wholesale pricing, or OEM branding. A product specialist will respond within one business day with a detailed proposal and current lead time. Your contact information is kept strictly confidential.
