Electromagnetic Shock Wave Pro

Product Overview

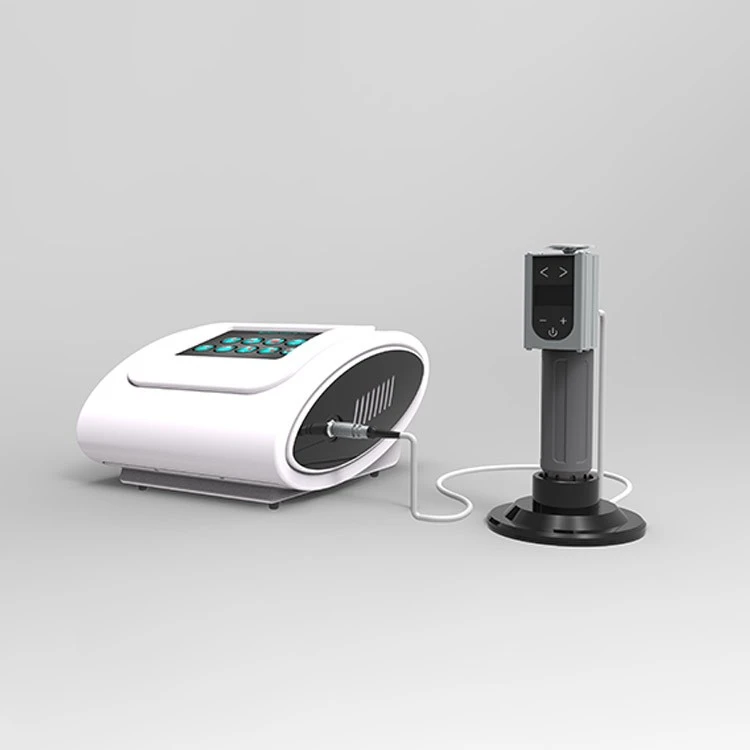

Benomi's Electromagnetic Shock Wave Pro is a clinical workstation that applies concentrated acoustic energy to three distinct problem areas: chronic musculoskeletal pain, vasculogenic erectile dysfunction, and aesthetic cellulite. The unit produces a focused pulse with an extremely steep pressure onset and a gentler decay phase, a waveform that travels through the dermis and fat without scattering, reaching structures that radial devices cannot.

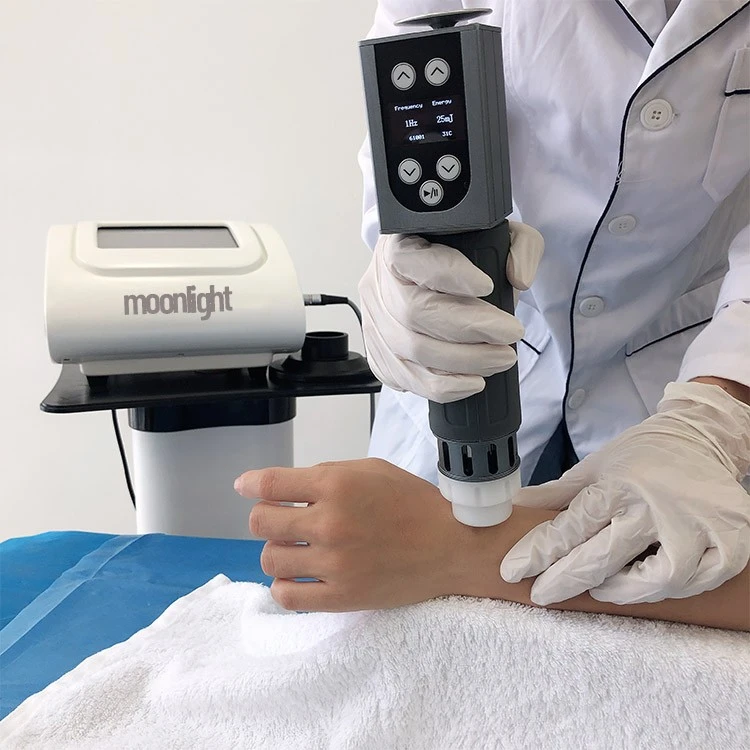

Instead of a pneumatic or ballistic mechanism, this system uses an electromagnetic coil to generate each pulse. The focal point stays narrow and predictable, which matters when treating calcific deposits or the penile shaft. The handpiece includes a live digital readout for energy level, repetition rate, cumulative shot count, and operating temperature. The console stores six protocols and can run in two delivery modes: Smart C for uninterrupted pulse trains and Smart P for sequenced patterns better suited to sensitive regions.

Seven interchangeable heads ship with the device, including two contoured for penile application. After the operator selects the anatomical area on screen, the software proposes the matching head and a baseline parameter set. This guidance lowers the risk of misapplication and allows less experienced staff to deliver consistent treatments. The chassis has been slimmed down from earlier generations, yet remains stable enough for full-day operation in a busy practice.

Key Advantages

Concentrated Energy That Spares Surface Tissue
The electromagnetic focal geometry keeps acoustic intensity high at depth while leaving the epidermis largely untouched. Rotator cuff calcifications, proximal hamstring insertions, and the corpora cavernosa can all be reached without creating burns or petechiae on the skin above.

Reparative Effects That Persist After the Session
Each pulse initiates a chain of cellular events: ionic membrane channels become more active, fibroblasts and osteoblasts enter division, and growth factors such as beta-1 accumulate at the site. New capillary networks form, nitric oxide signaling increases, and calcium deposits break apart gradually. Collagen output is supported, tissue tension falls, and the analgesic response outlasts the immediate post-treatment window.

Purpose-Built Handpieces for Urological Work
The two ED heads follow a defined protocol: five zones on the spongy tissue, 300 pulses each, for a total of 1,500 impacts per visit. More energy is directed toward the distal portion and less toward the base. The schedule runs twice weekly for three weeks, then pauses for three weeks before the next cycle. No medication or invasive step is involved.

Three Service Categories From One Console
A physiotherapy department can use the device for tendon and trigger point work with ten-minute sessions. A men's health clinic can run the ED protocol. A spa or body studio can offer cellulite smoothing and firming. Few other platforms span this range, which makes the Pro a flexible asset for hybrid practices.

Operator Guidance Reduces Setup Errors
The touchscreen identifies the correct head for the chosen body region and provides starting parameters. In clinics where several practitioners share equipment, this standardization keeps results consistent and shortens the learning period for recent hires.

Reduced Weight Without Compromising Reliability
The current model is lighter than its predecessors, easing movement between rooms. The electromagnetic coil and power supply are still built for continuous duty, and the outer shell resists daily wear.

Technical Specifications

Ideal Settings

Orthopedic and physiotherapy units managing long-standing tendon and joint complaints.

Urology practices delivering non-surgical erectile dysfunction care.

Sports medicine facilities requiring rapid soft tissue recovery between training blocks.

Aesthetic studios offering cellulite reduction and skin smoothing.

Pain clinics seeking a medication-free option for musculoskeletal patients.

Mixed-specialty centers needing one device for both rehabilitation and cosmetic services.

Treatment Comparison

Case A: Heel Pain Resistant to Standard Care
A 49-year-old female runner had plantar fasciitis for fourteen months despite orthotics and stretching. She received four weekly treatments, each roughly ten minutes with 2,000 pulses at moderate output. Pain dropped from 7/10 to 1/10. Follow-up ultrasound showed reduced plantar fascia thickness, and she resumed running two months later without symptoms.

Case B: Erectile Dysfunction of Vascular Origin
A 61-year-old male with poor response to PDE5 inhibitors completed six sessions over three weeks, then rested for three weeks. The dedicated ED head delivered 300 shocks to each of five penile zones per visit. His IIEF-5 score improved from 10 to 21. Doppler assessment confirmed higher peak systolic velocity in both cavernosal arteries. He achieved intercourse without medication.

Case C: Thigh Cellulite
A 35-year-old female with Grade 2 cellulite attended eight sessions over four weeks using the body contouring head. Photos under angled light showed clear smoothing after the fourth visit. Thigh circumference dropped by 2 cm, and skin firmness improved. She experienced no post-treatment soreness and returned to daily activities immediately.

Practitioner Feedback
"The in-handle display is the main reason I upgraded. I can monitor pulse count and temperature while keeping my eyes on the patient. The software's head recommendation also keeps my junior therapists within safe parameters. We've shortened recovery windows for several chronic tendon cases."
- Dr. Andreas K., Sports Physician, Munich

"I started offering the ED protocol eight months ago. The dedicated handpieces make the five-zone sequence straightforward. Roughly seven in ten of my vasculogenic ED patients have gained meaningful function, and they value the drug-free approach."
- Dr. Rachel S., Urologist, Melbourne

"We use the Pro for cellulite and skin firming. Sessions are brief, comfortable, and effective. The lighter frame lets one staff member shift it between rooms without help."
- Emma L., Spa Supervisor, Vancouver

Manufacturing and Certifications
Weifang Benomi Electronic Technology Co., Ltd. has manufactured therapeutic and aesthetic devices for over 18 years. Production occurs in ISO-certified cleanrooms in Weifang, China, where each Electromagnetic Shock Wave Pro is assembled and tested under documented quality controls. Long-term component suppliers ensure batch consistency, and every machine passes a full-function verification before dispatch.

The device is CE and FDA registered, with ISO 13485 quality certification. Benomi provides OEM/ODM customization for branding on the console, handpiece, and packaging. A 24-hour online support team handles service requests, and modular construction allows fast part replacement.

Wholesale Policies and Customization Support

MOQ: One evaluation unit available. Volume pricing from five units.

OEM/ODM: Custom logos, housing colors, interface languages, and packaging. Free graphic support during quotation.

Packaging: Export-grade carton with foam. Branded flight cases optional for bulk orders.

Lead Times: Stock units ship within 3 business days. Customized units require 7 to 18 business days.

Warranty: 2 years on main console and handpieces.

After-Sales: 24-hour response via email, video call, or remote access. Warranty spare parts dispatched free.

Training: Remote onboarding and video library included. On-site training available for larger orders.

Frequently Asked Questions

Will the treatment feel uncomfortable?
Patients usually describe a rhythmic tapping or mild pulsing. The operator adjusts energy in real time. A brief post-session soreness may occur after the first visit but fades within a day. ED sessions are generally tolerated without anesthetic.

What is the typical number of sessions?
Orthopedic conditions: three to five weekly visits. ED: six sessions over three weeks, a three-week pause, then repeat if needed. Cellulite: six to twelve sessions twice weekly.

Are there any exclusions?
Avoid use over active infections, open wounds, or suspected tumors. Do not treat during pregnancy or in patients with severe clotting disorders or high-dose anticoagulants. Men with penile implants or anatomical deformities should not receive the ED protocol.

Can one device serve both rehabilitation and aesthetic needs?
Yes. The included heads cover musculoskeletal, urological, and body contouring applications, allowing a single purchase to support multiple service lines.

How does the automatic head suggestion work?
Once the body region is selected on the screen, the software shows the correct head and a starting parameter set. This reduces setup errors and improves consistency across operators.

How can I get a quotation?
Complete the inquiry form on this page with your clinic name, country, and order type. A product specialist will reply within one business day with pricing, lead time, and supporting documents. Your contact information remains confidential.
